About This Product
Highly affordable, state of the art solutions for public safety.
Comba's CriticalPoint Class A BDA is a 700MHz/800MHz single or dual band digital channelized repeater that was designed with public safety first responders in mind. Fully compliant with the IFC and NFPA (National Fire Protection Association), CriticalPoint's BDA supports up to 32 channels per band (700MHz and 800MHz). Depending on the size of the building, the BDA is offered in two versions, a .5W or 2W of downlink power per band to accommodate smaller buildings. The channelized uplink squelch and channelized uplink AGC functions ensure minimum interference to base stations and optimizes communications quality.
It includes comprehensive alarming capabilities, which supports all NFPA and IFC required monitoring and alarming, and also provides local and SNMP based remote monitoring. The built-in signal generator and isolation testing function provide great convenience to system integrators during deployments. Finally, the unit can be ordered either AC or 48V DC powered, allowing for flexibility depending on the design of the system.
In addition, by utilizing Comba's well-known high efficiency amplifier design, the BDA provides a very small footprint, light weight design, low electrical operating costs, and low UPS backup costs. Comba's total vertical in house design and manufacturing capabilities, and supply chain management resources, ensures that the CriticalPoint BDA is a very affordable, reliable and state of the art.
- Digital/programmable utilizing FPGA
- Supports public safety 700/800MHz in single band or dual band version
- Supports FirstNet LTE band 14
- Web based GUI for intelligent configuration, SNMP supported
- Channelized Auto Gain Control (AGC) / Channelized uplink squelch
- Built-in mandatory isolation test to prevent BDA oscillation
- NFPA compliant dry contact alarms, NEMA 4X enclosure
Who is this for?
In times of emergency firefighters, police, emergency medical services (EMS), and other disaster response agencies need reliable two-way communication to respond effectively.
Tech Specs
| CriticalPoint™ Public Safety Bi-Directional Amplifier | |
|---|---|
| Frequency | Uplink: 788-805 MHz, 806-824 MHz Downlink: 758-775 MHz, 851-869 MHz |
| Total Output Power | Uplink: 27 dBm Downlink: 33 dBm |
| Maximum System Gain | 90 dB |
| Impedance | 50 Ohm |
| RF Connectors | N-Female |
| Power Consumption | 50 Ohm |

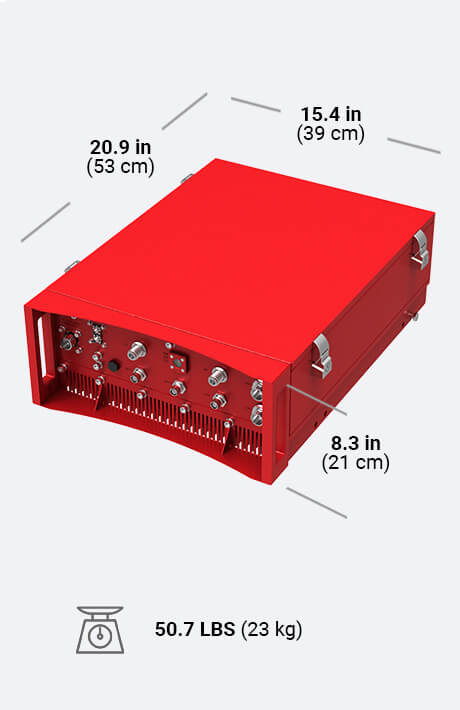

| Dimensions | 20.9 x 15.4 x 8.3 (inches) / 530 x 390 x 210 (mm) |
| Weight | 50.7 lbs. (23 kg) |
FCC NOTICE:
This is NOT a CONSUMER device. It is designed for installation by FCC LICENSES and QUALIFIED INSTALLERS. You MUST have an FCC LICENSE or express consent of an FCC Licensee to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100,000 for each continuing violation.
Installation & Deployment
At Signal Boosters we provide full turnkey integration of in-building wireless (IBW) systems that amplify signal indoors, delivering the signal you need to get the job done. From the first call to post-project, Signal Boosters handles every detail personally in-house. Our team of RF engineers, system integrators, designers, and certified signal boost specialists take complete ownership of your project.
- Pre-survey
- Site survey
- Data analysis
- Floor plans
- Equipment & Pricing
- Installing equipment
- Optimization
- Documentation
- Monitoring & support
-
