Faster Connection, More Options
The Peplink MAX BR2 Pro 5G is a fast, powerful cellular router. It uses multiple WAN and 5G connections for faster uplink and downlink. PoE (Power over Ethernet) ensures it will always be on, creating more peace of mind for you. Dual 5G routers and WiFi 6 can keep up to 150 devices online at one time with little to no lag. Enjoy everything you love about the BR1 Pro, but double!
True Peace of Mind
Thanks to all the WANs, PoE, and twin cellular modems you can rest assured that the BR2 Pro will seamlessly failover no matter what happens. Guarantee your data flow in emergencies, keeping you connected when it counts most.
All the WANS
With dual ethernet WANs, dual 5G/LTE, USB WAN, Wi-Fi WAN, and an additional MAX Adapter 5G for an instant third 5G connection, you have every connection you need x2! The BR2 is the perfect complement to any SDWAN system as well as providing very fast connection options to single-device vehicles.
Made for Vehicles
Wide input power range thanks to a Molex Micro-Fit power injector means that your power source is always secure. Ignition sensing keeps you in the know with your whole fleet, or even a single vehicle.
Mutiple Options Mean Multiple Devices
With multiple inbound options like 4X LANs and 2X WANs, you can connect more devices to your router. Set up Starlink in one WAN port and a secondary 5G hotspot connected to another. With four LAN ports you won't need an extra LAN switch to add everything you need to your home network.
The Peplink MAX BR2 Pro is a cellular modem designed to use outside 5G signal, turning it into WiFi 6 for connected devices. Designed for vehicles, it offers 400Mbps uplink and 200Mbps downlink, making it a great choice for boats, RVs, and even homes.
PoE, Power over Ethernet, and a Molex Micro-Fit power injector ensure that your router is always on. Rugged, vibration proof and temperature proof, the BR2 is certified to run in a wide array of environments, including heat and cold between -40° to +149°F.
Enjoy dual band WiFi 6 on up to 150 connected devices with less lag and interference. With all WAN ports you could possibly need, as well as a 2.5 Gbps WAN port with PoE, you have everything you need to stay connected. A whopping eight cellular antennas and two cellular modems with four sim slots offer failovers for your failovers.
- Multi-Core CPUs
- 2x 5G cellular modem
- Seamlessly integrates into existing SD WAN
- Heat and cold resistant between -40° to +149°F
- Built-in eSIM and SIM Injector support
- Dual Ethernet WANs, Dual 5G/LTE, USB WAN, and Wi-Fi WAN
- Ignition sensing
- Extra add-ons available
The Peplink MAX BR2 Pro is a cellular router and modem that draws in external signal via an antenna. The signal is then sent through a cable or wirelessly to attached devices. If the connection is wireless, the receiving devices use an antenna to get the signal from the router.
- RVs
- Boats
- Unmanned vehicles
- Trucks
- Homes
| Max BR2 Pro 5G | |
|---|---|
| WAN Interface |
2x 10/100/1000/2500M Ethernet1 2x 5G Modems with Redundant SIM Slots 1x USB 3.0 Interface |
| LAN Interface | 4x 10/100/1000M Ethernet |
| Wi-Fi Interface |
Simultaneous Dual-Band (2.4GHz / 5GHz) Wi-Fi 6, 2X2 MU-MIMO Wi-Fi WAN and/or AP |
| SpeedFusion features | Hot Failover, WAN Smoothing, Bandwidth Bonding2 |
| Number of PepVPN | 2/53 |
| Features |
Drop-in Mode Load Balancing/Failover Ignition Sensing |
| Router Throughput | 1 Gbps |
| PepVPN Throughput (No Encryption) | 400 Mbps |
| PepVPN Throughput (256-bit AES) | 200 Mbps |
| Recommended Users | 1-150 |
| 5G Cellular Data Rate4 (Downlink/Uplink) |
5G: 4 Gbps / 700 Mbps LTE CAT-20: 2 Gbps / 150 Mbps |
| Antenna Connectors |
8x SMA Cellular Antenna Connectors 2x RP-SMA Wi-Fi Antenna Connectors 1x SMA GPS Antenna Connector |
| Power Input |
DC 10 - 30V 802.3at PoE |
| Power Consumption | 30 W (max.) |
| Dimension (L x W x H) | 8.58 x 7.68 x 1.61 inches / 218 x 195 x 29.5 mm |
| Weight | 2.42 pounds / 1.1 kg |
| Operating Temperature | -40°– 149°F / -40°– 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Warranty | 1-Year Limited Warranty |
| Certifications5 |
FCC, CE, RoHS E-Mark (Motor Vehicle) EN 61373 Shock and Vibration Resistance EN 50155 Railway Applications EN 61000 Electromagnetic Compatibility |

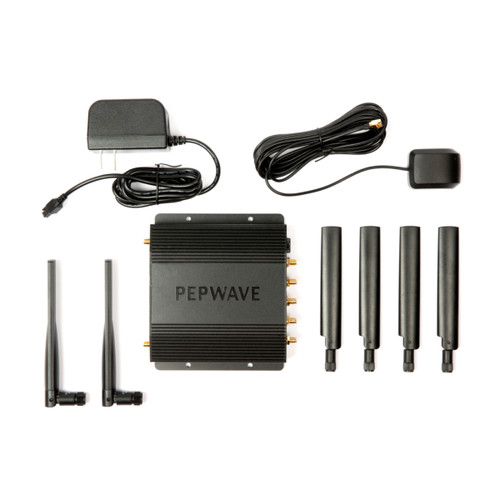

| Package Content |
1x BR2 Pro 1x 12V3A 4-Pin Power Supply (ACW-663) 8x LTE/5G Antennas (ACW-235) 2x Dual Band Wi-Fi Antennas (ACW-341) 1x GPS Antenna (ACW-232) |
1 Requires a PrimeCare subscription, complimentary for the first year.
2 5 PepVPN Peers are enabled for PrimeCare models which requires a PrimeCare subscription, complimentary for the first year.
3 Feature will be available soon.
4 Maximum theoretical data rates.
5 Certification pending.
Frequently Asked Questions
The MAX BR2 Pro is a router with 7x WAN connections, 2x 5G cellular modems, and 1x Serial Port for M2M/IoT applications. It also has Ignition Sensing and a Molex Micro-Fit power connector.
The MAX BR1 Pro 5G can be used in a variety of situations. It was designed for vehicles and is vibration, dust, and temperature proof. It works well in trains, busses trucks, and RVs. It can also be used in homes and offices. Anywhere that you need to receive cell signal and create a WiFi network.
FCC, CE, RoHS, and E-Mark
EN61373: Shock and Vibration Resistance
EN50155: Railway Applications - Electronic Equipment used on Rolling Stock
* The MAX BR1 Pro 5G has carrier certifications from AT&T, T-Mobile, and US Carriers. Verizon’s US Carrier certification is pending.
PrimeCare is Peplink's subscription service bundling InControl, Warranty, SpeedFusion license upgrades, and FusionHub Licenses in one neat package.
All our Peplink routers come with 1-year of PrimeCare upon activation.
