The Bolton Long Ranger Antenna Q&A
The Long Ranger Featured Review
"Placed on a tower at 65 feet above ground pointing to a LTE tower 7 KLM / 4.2 miles away, this antenna after setup with a meter proved to be a real winner. Yes, it requires some adjustment as mentioned with the narrow beam, but once aligned a trues success story. Heartly recommended"
- Lee S.
The Long Ranger Owner
At Home on the Range
Improve your cellular and WiFi signals by up to +28dB, more than any other high gain directional antenna on the market.
Not Your Grandpa's Antenna
Works with Signal Boosters, Modems, Routers, and Hotspots. Plug in to your cell phone signal booster, mobile hotspot, WiFi router, modem, or range extender and see the difference. Connectors sold separately.
This Thing is Big
and Not Afraid of Bad Weather!
Parabolic design allows for strong winds and heavy rain and snow to pass right through without affecting your signal.
Plays Well With Others
COMPATIBILITY
600-6500 MHz frequency bands
All Cellular: 5G / 4G / LTE / 3G GSM / CDMA and more.
All North American Carriers: ATT / Verizon / T-Mobile / Sprint /
Rogers / Bell / Telus / US Cellular / Telcel / Movistar and more.
WiFi / Wi-Max / GPS / GOV / MIL / SDR
DEVICE COMPATIBILITY
Cell Phone Signal Boosters: weBoost / SureCall / Cel-Fi / HiBoost / WilsonPro and more.
Hotspots: Pepwave / MoFi / Netgear Nighthawk and more.
Any WiFi router or modem
The Long Ranger Pairs Nicely With Our Most Powerful Products
This extremely versatile antenna is the perfect accessory for any setting or application. Our happiest customers pair this state of the art antenna with our top cellular signal boosters including the Cel-Fi GO X cellular signal booster and our full lineup of Inhand Networks cellular routers available in bundles exclusive to SignalBoosters.com
Improve your WiFi and cellular signal boosters with the The Long Ranger - Ultra High Gain Parabolic Antenna!
The Bolton Technical Long Ranger is the highest continuous gain parabolic antenna on the market.
Compared to other wideband antennas with averages of +8 to +12 dB, the Bolton Technical Long Ranger provides an average of +28 dB. That’s a minimum of 15X the power output!
With a radiation cone between 4 to 20 degrees, it allows for narrow, fine-tuned, and farther aim than most wideband antennas.
Ideal for rural communities in extremely weak signal areas who have trouble even reaching their nearest cell tower, and for enterprise, who want to get the most out of their commercial booster.
The Bolton Technical Long Ranger works with all cell phone signal boosters (weBoost, SureCall, Cel-Fi, etc.), WiFi boosters, and hotspot boosters (Pepwave, MoFi, Netgear Nighthawk, etc).
This is an after market accessory that will help boost your signal, but is not mandatory.
Capable of working on a multitude of bands: Cellular, LTE, 5G, GSM, ISM, CDMA, UMTS, 2G/3G/4G/ WiFi, Homeland Security, Wi-Max, GPS, Homeland Security, Military, Satellite, Aerospace exploration, RadioTelescope and more.
- Ultra long range (Up to 20 miles from the tower).
- A high gain directional antenna that works on all frequencies between 600 MHz and 6500MHz
- Weatherproof
- All cellular (including 5G), WiFi, Wi-Max, GPS, GOV, MIL, and SDR bands
- Up to +28 dB Gain
- People in rural areas desperately searching for signal.
- Businesses needing the absolute best outdoor antenna.
- 2x Grid Reflectors
- 1x Feedhorn
- 1x Reinforced L-Bracket
- 2x U-Bolts
- 2 x Toothed Saddles
- 4 x Short Bolts & Washers
- 4 x Long Bolts & Washers
- 1 x Right Angle Connector
| Bolton Technical Long Ranger Antenna | |
|---|---|
| Frequency & Gain |
600 - 960 MHz - +15 dB 1700-2200 MHz - +28 dB 3000-6500MHz - +26 dB |
| Polarization | Vertical or Horizontal |
| Half-power Beam Width (°) | Low Band: 23 Horiz, 35 Vert |
| Half-power Beam Width (°) | Mid Band: 10 Horiz, 13 Vert |
| Half-power Beam Width (°) | High Band: 7 Horiz, 9 Vert |
| Front-to-back Ratio (dB) | 20 AVG |
| Impedance (Ω) | 50 |
| VSWR | 2.0 AVG |
| Max Input Power (W) | 100 |
| Connector | N-Female |

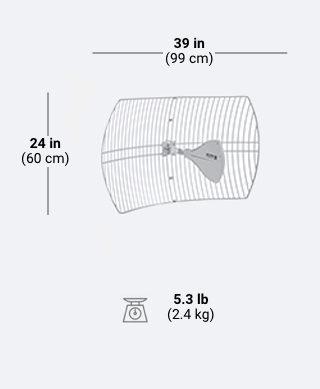

| Dimensions (in/cm) | 24x39x16 / 60x99x40 |
| Antenna Weight (lb/kg) | 5.3 / 2.4 with bracket |
| Rated Wind Velocity (mph/kph) | 130 / 209 |
| Wind Load @ Rated Velo (M/K) | 150 / 68 |
| Reflector Finish | Electrostatic Powder Coat |
| Radome Material | ASA Anti UV |
| Water Resistance | IPX Weather Rated |
| Operating Temperature (°C/°F) | -40 to +60 / -40 to +140 |
