About the weBoost Overland Antenna (311248)
Kit bundles weBoost’s Overland Antenna (311248) and Overland Antenna Mount (901168).

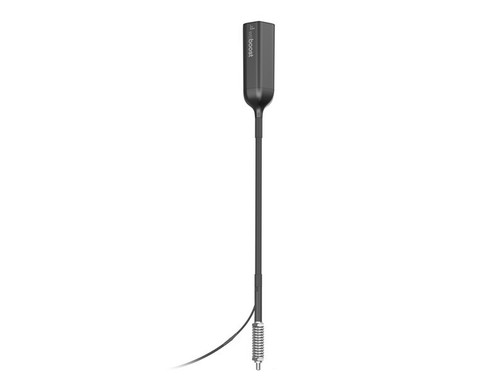

The Overland Antenna is weBoost’s most durable vehicle antenna yet. High-performing with up to 4.3 dBi gain, it maximizes connectivity in trucks, SUVs, vans, and RVs using the Drive Reach. Rugged construction meets U.S. Military 810H and NEMA IP66 standards, ensuring durability against high winds, dust, dirt, extreme temperatures, and low clearance obstacles.
Installation is easier than ever with the versatile Overland Antenna Mount. It supports T-slot, pole, and fixed mounting options, and with 180° adjustability, the antenna can be positioned upright, angled, or laid flat.
What's Included in the Kit?
- Overland Vehicle Antenna (311248)
- Overland Antenna Mount w/ Mounting Hardware (901168)
Technical Specifications
| Frequency (MHz) | 698–960, 1710–2700 |
| Impedance | 50 Ohm |
| VSWR | < 2.0:1 |
| Gain (dBi) | Up to 4.3 |
| Polarization | Vertical |
| Connector | SMA Male |
| Dimensions | 7.9 x 2.6 in (200 x 66 mm) |
| Weight | 1.2 lb (0.54 kg) |
| Operating Temperature | -40° to +85° C |
| Standards | U.S. Military 810H, NEMA IP66 |
